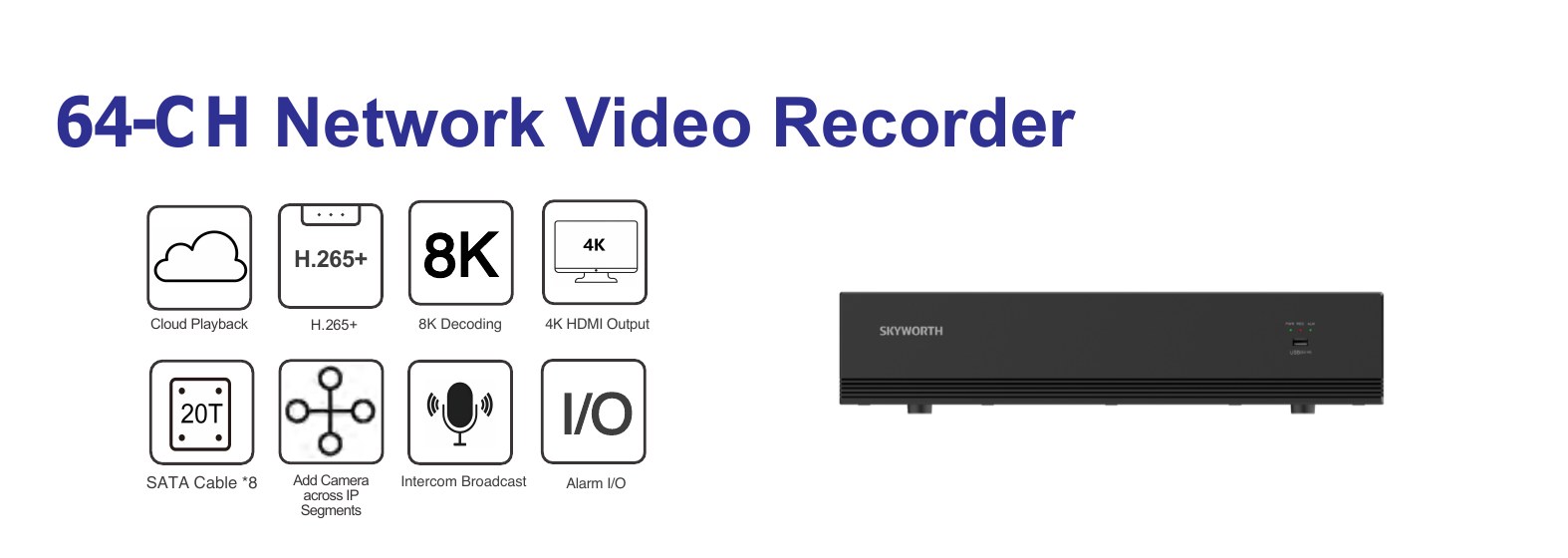

64-Channel Enterprise NVR
64-CH 8MP recording, 16-CH 4MP playback, 8× 20TB HDD bays, Dual HDMI, 2× 1Gbps RJ45, USB 3.0, Local Vehicle Detection, 220-240V AC
Technical Specifications
Main Specification
| Model | SKH-N864K-A |
| Decoding Capacity | Max. 8K |
| Channel | Max. 64 |
| Panel | 1 / 4 / 8 / 10 / 16 / 25 / 36 / 64 Panel |
| IPC Connection | Max. 64-CH |
| Live View | 1 Panel - 60MP (8K+) 4 Panel - 4CH*12MP 8 Panel - 8CH*8MP 16 Panel - 16CH*4MP 36 Panel - 16CH*4MP + 20CH*2MP 64 Panel - 20CH*4MP + 44CH*720P |
| Playback | 16 Panel - 4MP / 4 Panel - 16MP |
| Incoming Bandwidth | 800Mbps |
| Outgoing Bandwidth | 800Mbps |
| Audio | Audio Out *1 + Audio In *1 |
| Certificate | RoHS |
| Material | Metal |
| Ethernet | 10/100/1000Mbps (RJ45) *2 |
| Alarm I/O | Input 8 channels + Output 4 channels (support power supply) |
| HDD | Support HDD *8 (Max. 20T) |
Alarm
| IPC Side | Human & Vehicle Detection / Motion Detection / Area Detection / Line Crossing |
| NVR Local | Video loss / HDD error / HDD full / No HDD / IP conflict |
Others
| Language | English / German / French / Spanish / Arabic / Russian / Vietnamese / Italian / Japanese / Turkish |
| ONVIF | Profile S |
| Protocol | TCP/IP, DHCP, HTTP, NTP, DNS, RTP, RTSP, P2P |
| APP | AI Home Camera |
General Specification
| Power | AC 180-240V ~ 50Hz 2.5A |
| Working Humidity | <90% (non-condensing) |
| Working Temperature | -5°C ~ 40°C |
| Dimension | 440*450*97 mm |
| Net Weight | 6130g |
| Gross Weight | 7680g |
| IP Grade | Indoor |

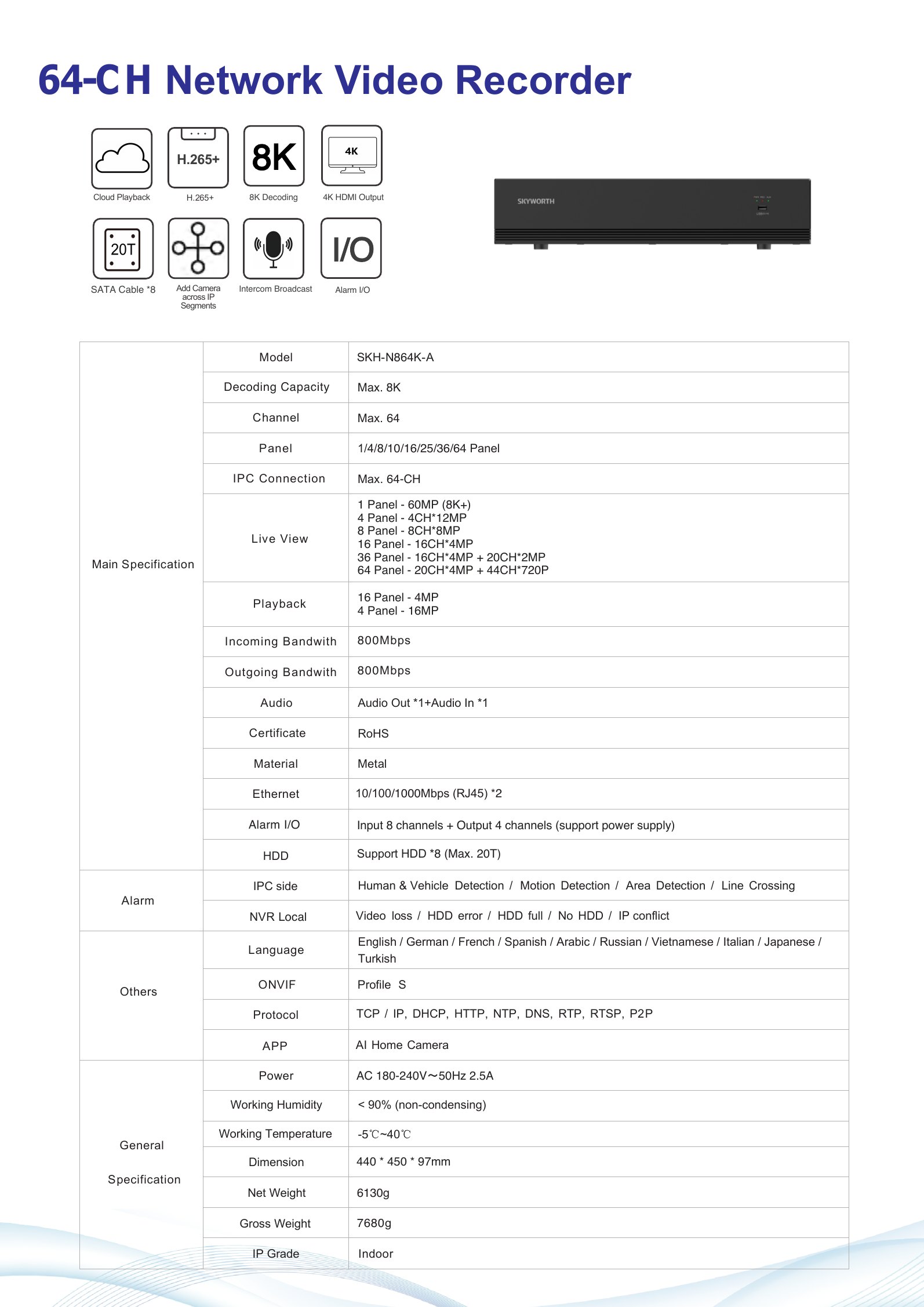

Product Datasheet
